Schwarzbeck CS-50 Unsymmetrical Splitter

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1229



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

CS-50 is a resistive, unsymmetrical two way splitter with an impedance of 50 ?. It is part of the measurement setup according to EN 50561-1:2012 which is explained in chapter 9.2. Figure 1 shows the measurement setup with the available components.

The unsymmetrical splitter CS-50 belongs to a series of measurement equipment to measure power line communication devices.

This splitter is built in a resistive way. Resistors made with tight tolerances and temperature stable have been used. Thus the device can be used for a wide frequency range.

The CS-50 has a very flat frequency response of typically less than 0.1 dB and can be used up to above 50 MHz. The ports have identical properties and can be used in any direction.

Splitters like this do have an insertion loss of 6 dB as a matter of principle. They are being used as power dividers (signal distributors) or combiners (to merge signals) also.

A signal generator and a level meter have to be connected to the unsymmetrical splitter CS-50. A RF power meter, an EMC measurement receiver or a spectrum analyzer can be used as a level meter. If one device is not needed, the vacant port has to be terminated with 50 ?.

Safety note
The CS-50 may not be used at the mains directly. Local safety rules for devices connected to mains have to be followed.

Further products Further equipment for PLC measurements.

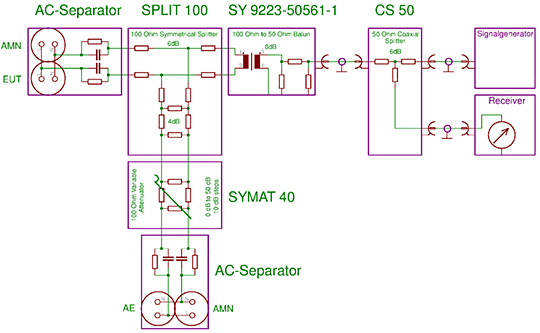

Fig. 1: Test setup according to EN 50561-1, fig. 4

Fig. 1: Test setup according to EN 50561-1, fig. 4

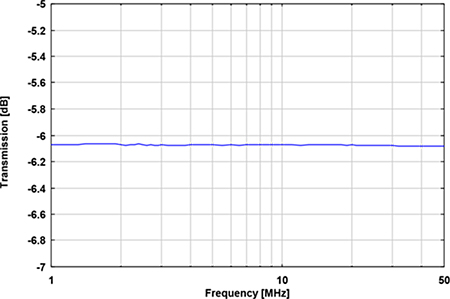

Fig. 2: Typical Transmission between any two Ports, the free port terminated with 50 ?

Fig. 2: Typical Transmission between any two Ports, the free port terminated with 50 ?

Specifications
Frequency range DC ... 30 MHz
Usable frequency range DC … >50 MHz
Insertion loss 6 dB ±0.2 dB
Frequency response <±0.1 dB
Nominal Impedance 50 ?
Max. Input power 1 W
VSWR < 1.1 : 1 @ 30 MHz
Housing material Aluminium
Housing dimensions 125 x 104 x 50 mm
Weight ca. 280 g
Terminals BNC-Plug
Ground connectors Bottom of case and 4 mm laboratory jack
