Overview
Helmholtz coil is designed to produce standard magnetic field with wide applications. It can be used to calibrate Hall probe and different types of magnetometers, compensate geomagnetic field, judge magnetic shielding effect, measure radiated magnetic field and research material magnetic properties. It is featured with open space, easy to use, good linearity between magnetic field and supply current and broad uniform area for magnetic space. It can meet the requirements of IEC61000-4-8, GB/T17626.8, GB/T17215-2002 and GB/T15283-94. One-dimension, two-dimension and three-dimension combined magnetic field can be made according to needs.
| Technical Parameters | ||
| Magnetic strength | 1A/m~1000A/m | |
| 1.25μT~1500uT | ||
| Magnetic direction | 90°/180° | |
| Test duration | 1-100A/m continuous (1-400A/m optional) | |
| 100-1000A/m (1-10s for a short time) | ||
| Coil turns | Number of turns | |
| Coil size | 1000mm (length) ×1000mm (width) ×540mm (height) | |
| Temperature | 15-55°C | |
| Dimension | 1540 x 1440 x 1040mm | |
| Weight | Approx. 135kg | |
| Optional Simulators | ||
| MFS 1200 | Power frequency magnetic field simulator as per IEC 61000-4-8 | |
| MFS xxxAP | AC/DC (variable frequency) magnetic field disturbance simulator as per EN50121-4 | |
| APS xxCxx | Voltage variation simulator as per ISO11452-8 | |
| CCS 600 | Combination wave simulator as per IEC 61000-4-8 | |
| Optional Accessories | ||

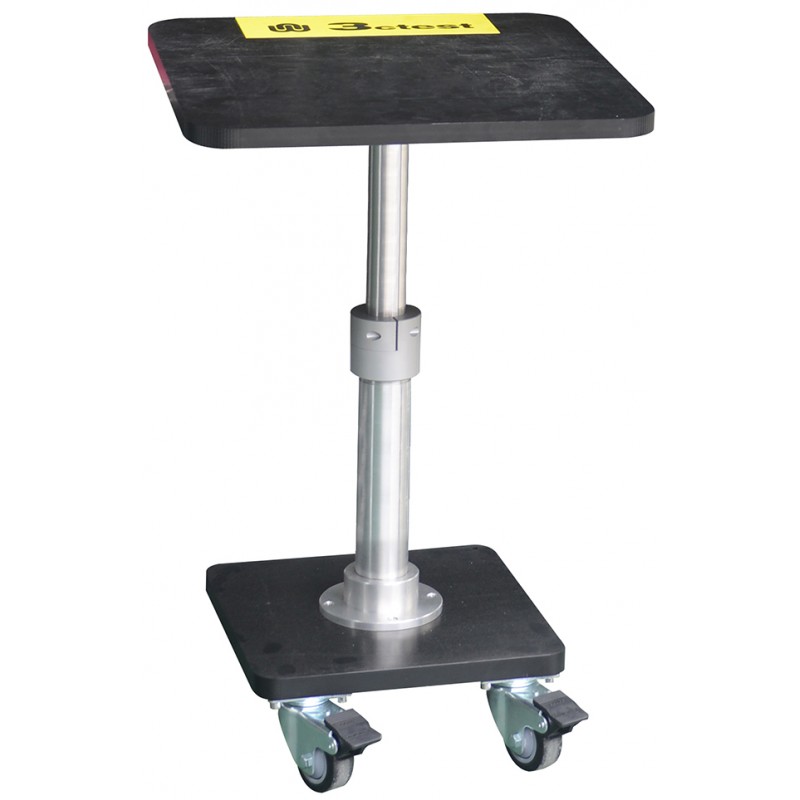

| Name | Helmholtz coil EUT table |  |
| Model | HMXQ-00 | |
| Table size | 500*500mm | |
| Fall/Rise height | 750/450mm | |
| Weight | Approx.10kg | |
