Schwarzbeck HFRAE 5163 Passive Magnetic RX Loop Antenna

Condition:
New
Top Frequency Range:
300 MHz
Bottom Frequency Range:
9 kHz
Loop Diameter:
2"
Antenna Factor (Magnetic):
25 dB/Ωm
Antenna Factor:
76.5 dB/m
Test Standards:
VG 9537313 and VG 95373-23, IEEE C.95.1-1999 and IEEE C.95.1-2005, ICNIRP, FCC 96-236, TKZulV, BImSch, BEMFV, VDE 0848 and many other standards.
Applications:
RF Immunity Testing
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



HFRAE 5163 Downloads

HFRAE 5163 Datasheet



Availability:

Typically In Stock

SKU:
sku-1737



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

HFRAE 5163 Overview

The Loop Antenna for magnetic fields was designed to measure medium to high-level field-strengths in the frequency range from 9 kHz to 400 MHz in combination with 50Ω Measuring Instruments. The loop is shielded against electrical fields. Thanks to the passive design very high fieldstrengths can be measured without compression or intermodulation effects caused by the probe.

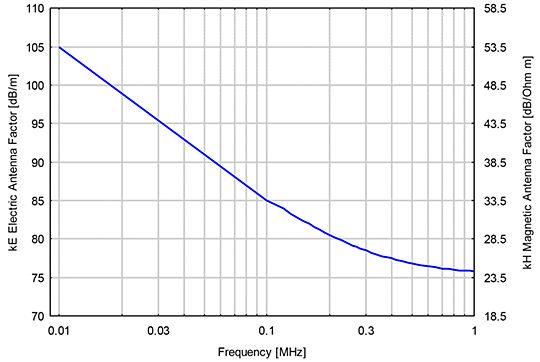

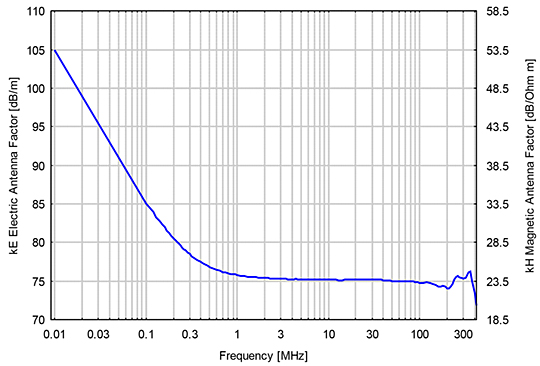

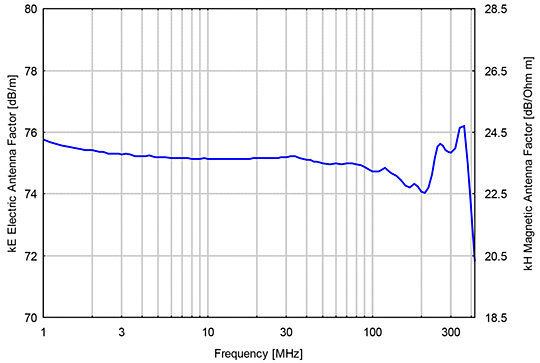

The HFRAE 5163 is designed to obtain maximum output voltages of 1 V (120 dB µV ) across 50 Ω when exposed to the highest limits for radiated immunity tests, e.g. in VG 95373- 13 and VG 95373-23. The HFRAE 5163 is also well suited to measure the protection limits according to IEEE C.95.1-1999 and IEEE C.95.1-2005, ICNIRP, FCC 96-236, and many other standards. The antenna factor is nearly constant at 25 dB/Ωm in the frequency range of 1 MHz to 400 MHz. From 9 kHz to approx. 100 kHz the antenna factor falls with 20 dB/frequencydecade.

Application of the HFRAE 5163:
To determine the magnetic fieldstrength in dBµA/m we have to add the value of the magnetic antenna factor kH in dB/Ωm on the voltage reading in dBµV of the measuring instrument as well as the cable attenuation in dB.

[split]

Specifications
Frequency Range  9 kHz - 400 MHz
Loop Diameter  50 mm
Connector  BNC
Impedance  50 Ω
Mount (Camera Thread)  3/8"
Material  Brass, Nickel plated
Weight  150 g
kH (nominal)  25 dB/Ωm
kE (nominal)  76.5 dB/m



HFRAE 5163 Key Considerations

Manufacturer:
Schwarzbeck
Top Frequency Range:
300 MHz
Bottom Frequency Range:
9 kHz
Loop Diameter:
2"
Antenna Factor (Magnetic):
25 dB/Ωm
Antenna Factor:
76.5 dB/m
Test Standards:
VG 9537313 and VG 95373-23, IEEE C.95.1-1999 and IEEE C.95.1-2005, ICNIRP, FCC 96-236, TKZulV, BImSch, BEMFV, VDE 0848 and many other standards.
Applications:
RF Immunity Testing
