Overview

The Transmit Loop Antenna HFRA 5153 was designed to generate well defined magnetic fields with moderate fieldstrength levels (< 0.1 A/m) in the frequency range up to 30 MHz. With slightly reduced performance the loop can be used in the frequency range up to 50 MHz. The loop, consisting of one turn, is shielded against E-fields. The nickel-plated brass housing contains a series resitor of 10 ?, which is used to monitor the loop current using a high impedant voltage measuring equipment (e.g. Oscilloscope, Voltmeter). The loop current (monitor voltage) is directly proportional to the generated Magnetic Fieldstrength. The loop can be mounted on a tripod (e.g. AM 9144) and comes with a female camera thread 3/8".

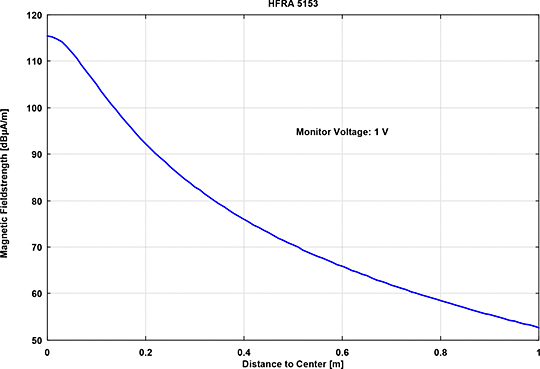

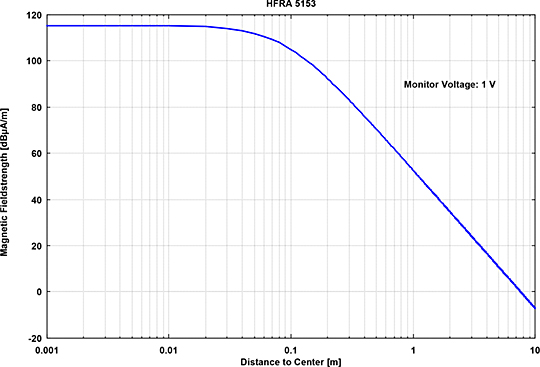

The generated magnetic field is proportional to the loop current. A tabular indicates the fieldstrength values in A/m and dBµA/m to be expected with the maximum permissible current of 100 mA. Additionally the relative decrease of magnetic fieldstrength referred to the center of the loop antenna can be found. Lower magnetic fieldstrengths can be achieved by scaling the current to the respective value. With a feed current of 10 mA instead of 100 mA the tabular values decrease by a factor of 10, which corresponds to a reduction by 20 dB in logarithmic measure. All specified magnetic fieldstrengths refer to the component which is perpendicular to the loop-plane.

Application:

The HFRA 5153 is equipped with two female BNC-connectors. One of them can be used to feed the loop, the other can be used to monitor the voltage with a voltmeter (high impedance). The measurement distance to apply for the calibration of RX-loops depends on the RX-loop dimensions. For large loop antennas a higher calibration distance is required in order to obtain a uniform field distribution over the complete loop area. The shorter the distance, the smaller the uniform area and the size of antennas to be calibrated. The following table indicates the recommended minimum calibration distances, depending on the loop diameter of the loop under calibration and the wanted field uniformity.

Specifications
Frequency Range 0-30 (50) MHz
Input Impedance typ. 450 ?
Number of turns 1
Loop diameter 180 mm
Maximum Loop Current 100 mA / 100 dBµA
Maximum Voltage at the Current Monitor Terminal 1 V / 120 dBµV
Maximum Power 4 W
Mechanical Dimensions 230 x 190 x 80 mm
Terminals 2 x BNC
Mount 3/8"
Weight 350 g
