Schwarzbeck ESLP 9145 Microwave Log Periodic Antenna

Condition:
Used
Frequency Range:
1 to 18 GHz
Usable Frequency Range:
0.7 GHz to 20 GHz
Connector:
N-Type (f) 50 Ω
Isotropic Gain:
typ. 6 dBi +/- 1.2 dB
Antenna Factor:
22 to 50 dB/m
Applications:
Radiated Immunity, Radiated Emissions
Manufacturer:
Schwarzbeck
$390.00



SKU:
9141-RE
Availability:

In Stock


Getting Started...

Overview

Field strength generated under free space conditions at a separation from the antenna tip (see diagrams for several combinations of power and distance). If environmental reflections are present, this may lead to frequency and height dependent field strengths. The power figures refer to a 50 W source and an unmodulated (cw) signal. An 80% Amplitude Modulation requires a 1.8 times higher voltage, resulting in 3.24 times higher power compared to cw. A field strength increase of factor 10 requires 100 times amplifier-power.

The safety precautions and relevant standards must be considered while performing tests with high field strength! Ignoring these standards and precautions may result in severe danger for health!

Specifications
Linear polarised microwave Log.- Per. broadband antenna with removable plastic protection cover.
Nominal Frequency range 1 - 18 GHz
Useable Frequency range 0.7 - 20 GHz
Connector female 50 Ω N

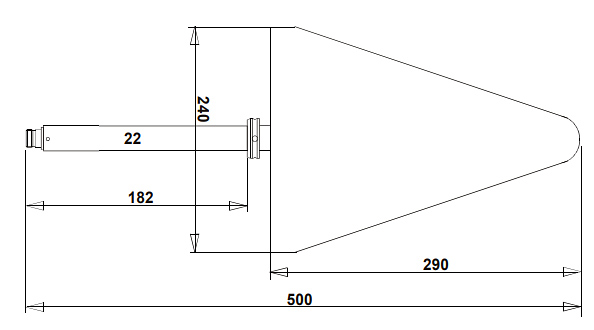

Mounting tube Ø=22 mm, L=185 mm
Isotropic gain typ. 6 dBi +/- 1.2 dB
Antenna Factor 22 to 50 dB/m
SWR typ. < 2
Max. Input Power 20 W
Half-Power Beamwidth (E-plane) 55 ° (70° - 40°)
Half-Power Beamwidth (H-plane) 85 ° (130° - 65°)
Dimensions 500 x 240 x 40 mm
Weight 900 g / 1.98 lbs

Videos

Key Considerations

Manufacturer:
Schwarzbeck
Frequency Range:
1 to 18 GHz
Usable Frequency Range:
0.7 GHz to 20 GHz
Connector:
N-Type (f) 50 Ω
Isotropic Gain:
typ. 6 dBi +/- 1.2 dB
Antenna Factor:
22 to 50 dB/m
Applications:
Radiated Immunity, Radiated Emissions
