Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz

Frequency Range (nominal):
4 - 8 GHz
Frequency Range (useable):
3.7 - 8.5 GHz
Gain:
17 - 21 dBi
Max. Input Power:
1 kW (4 GHz), 0.5 kW (8 GHz)
Max. Peak Input Power:
5 kW
Connector:
N-Type Connector Or SC
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1722



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

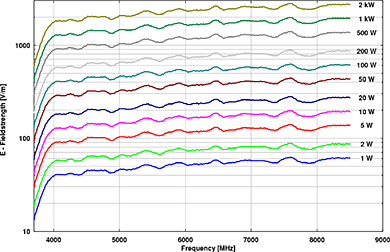

Linear polarized standard gain horn antenna with coaxial connector (choose N or SC-connector) for highest power handling. The antenna was designed to generate highest fieldstrength at 1 m distance.

Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz

Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz
Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz Schwarzbeck HA 9251-48 Standard Gain Horn Antenna, 4 - 8 GHz



Specifications
Frequency Range (nominal) 4 - 8 GHz
Frequency Range (useable) 3.7 - 8.5 GHz

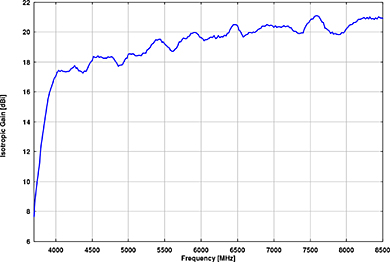

Gain ≈ 17 - 21 dBi

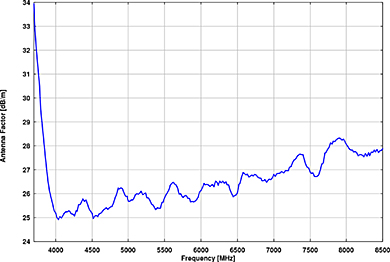

Antenna Factor ≈ 25...28 dB/m

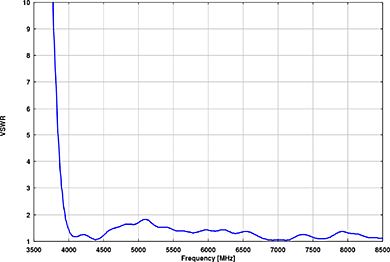

VSWR typ. < 1.5
Front to Back Ratio typ. > 27 dB
Half Power Beamwidth (E-Plane) 21° @ 4 GHz
14° @ 6 GHz
12° @ 8 GHz
Half Power Beamwidth (H-Plane) 22° @ 4 GHz
16° @ 6 GHz
13° @ 8 GHz
Connector N, SC
Max. Input Power (cw) 1 kW (4 GHz)
0.5 kW (8 GHz)
Max. Peak Input Power 5 kW
Mounting Threads 3/8" , 1/4"
Dimensions 492 x 164 x 224 mm
Weight 1.6 kg
Material Aluminium
