Schwarzbeck TETRA DIPOLE Linear Polarized Half-Wave Dipole

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1813



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

Linear polarized half-wave dipole with 1:1 balun and fixed element length for measurements at TETRA (terrestrical trunked radio) networks.

Specifications
Frequency Range 340 - 480 MHz
Nominal Impedance 50 ?
Total Dipole Element 0.37 m
Antenna Factors acr. 50 ? 20...23 dB/m
Antenna Gain over Isotropic yp.: +1.5 dBi
Max. Power rating 17 W
VSWR < 2
Half Power Beamwidth, E-Plane 80 +/- 3 °
Material Aluminium
Housing Dimensions 50 x 80 x 55 mm
Tripod mount: large camera thread 3/8"
Weight 625 g
Available Connectors N / BNC

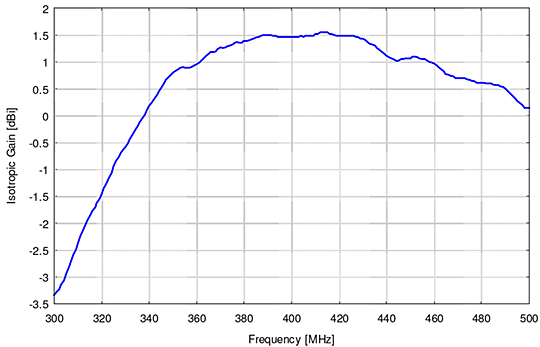

Isotropic Gain
Isotropic Gain - Schwarzbeck TETRA DIPOLE Linear Polarized Half-wave Dipole

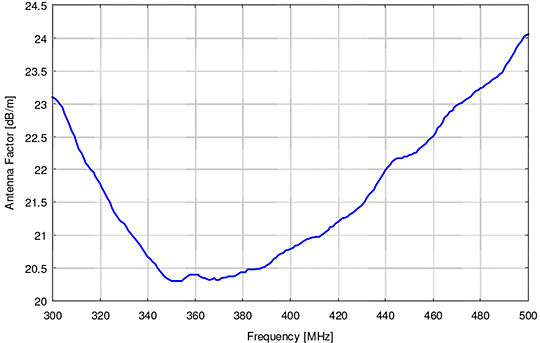

Antenna Factor
Antenna Factor  - Schwarzbeck TETRA DIPOLE Linear Polarized Half-wave Dipole

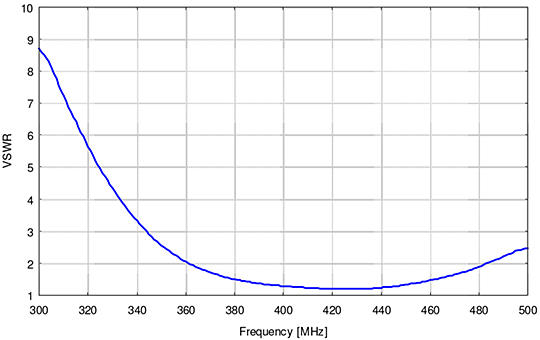

Standing Wave Ratio

VSWR
VSWR - Schwarzbeck TETRA DIPOLE Linear Polarized Half-wave Dipole
