Schwarzbeck CDN S4 XLR4 Coupling Decoupling Network

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1219



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The CDN S4 XLR4 is part of the coupling decoupling network series for conducted common mode immunity testing according to IEC 61000-4-6. The CDN S4 XLR4 is compliant to IEC 61000-4-6 figure D.1 and is suitable for immunity testing on screened XLR lines with 4 pins. there is a M4 thread located at the AE side to ground as well as a 4 mm socket to connect the device to ground.

The CDN S4 XLR4 is intended to measure EuTs with XLR4 interface. The frequency range from 150 kHz to 230 MHz. The circuitry is shown in Fig. 4.

All CDNs comply to the requirements of IEC 61000-4-6. Each CDN comes with individually measured data and a calibration certificate for the common mode impedance and the voltage division factor. Further typical data for the phase (not normative) can be found in fig. 2

A variety of calibration adapters and other accessories are available as option. With the two included adapters SA XLR in conjunction with the optional series resistor SR100-6W, the required spacing of 30 mm is obtained as depicted in Fig. 9 of IEC 61000-4-6. The adapter comes with an indexing slot and can only be mounted with its screw facing upwards.

The connection to ground can be accomplished using the ground plane of the CDN. Additionally there is a M4 thread located at the AE side to ground as well as a 4 mm socket to connect the device to ground. The CDN is equipped with 4 mounting notches of 6 mm width at the baseplate.

Fig. 1: typ. EuT common mode Impedance

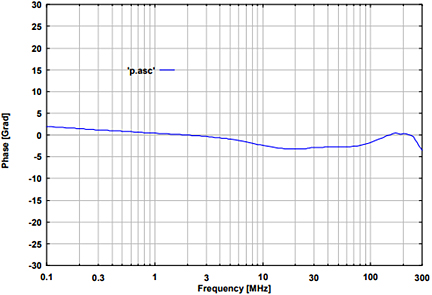

Fig. 2: typ. phase EuT-Port, (common mode)
Fig. 1: typ. EuT common mode impedance Fig. 2: typ. voltage division factor RF-port to EuT-port
Fig. 1: typ. EuT common mode Impedance
Fig. 4: Principal Circuitry CDN S4 XLR4

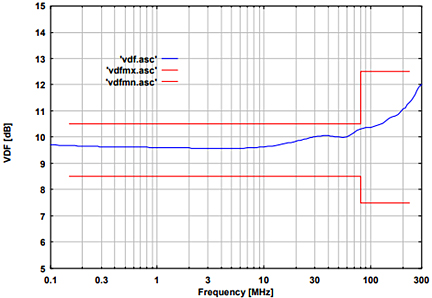

Fig. 3: typ. voltage division factor RF-port to EuT-port Fig. 4: Principal Circuitry CDN S4 XLR4

Specifications
Frequency range 150 kHz … 230 MHz
Common mode impedance 150 kHz–24 MHz: 150 ? ±20 ?
24 MHz–230 MHz: 150 ? +60 ? / -45 ?
Max. RF-test voltage (emf) 30 V
RF-input-power 6 W (continuous)
RF-input-connector 50 ? BNC (female)
Voltage division factor
RF-input – EuT-por
9.5 dB 150 kHz – 80 MHz: ±1 dB 80 MHz – 230 MHz: -2 dB, +3 dB
Housing material Aluminium
Housing dimensions 216 x 105 x 108 mm
Weight ca. 1580 g
EuT, AE connectors XLR 4 (female)
XLR 4 (male)
Included accessories SA XLR-M
Optional accessories:
50 ? to 150 ? adapter
SR100-6W
