Schwarzbeck SBA 9119 Microwave Biconical Broadband Antenna

The Schwarzbeck SBA 9119 Microwave Biconical Broadband Antenna has two main applications: A passive field probe for frequency selective measurements of the generated field according to EN 61000-4-3, including the measurement of the uniform area. A further application is the validation of fully anechoic rooms for measurements above 1 GHz according the Site-VSWR-method, described in CISPR 16-1-4. In conjunction with the SBA 9112 a frequency range from 1 to 18 GHz can be covered with excellent antenna performance. Accepting some limitations (i.e. Antenna Factor and VSWR increase, symmetry reduction) the SBA 9119 can be used from 0.5 GHz on. The validation of test sites with commonly used Microwave antennas (e.g. Log.-Per. or Horn Antennas) leads to insufficient results, since these directive gain antennas with concentrated directional pattern do not take the test site characteristics into account.

Application

The typical applications of the microwave biconical Antenna are the evaluation of test sites, the (frequency selective) fieldstrength measurement and the generation of defined fieldstrength (e.g. ERP or EIRP). Thanks to the wide bandwidth there is no need for a time consuming change of the antenna elements as required when operating with tuned half-wave dipoles. The biconical elements allow a continuos sweep over the complete frequency range. Because of the dipole-like directional pattern, the fixed phase center and the high power handling capability the SBA 9119 may replace tuned half-wave dipoles in many applications. The SBA 9119 is not intended for emission testing with very low limits, horn and Log.-Per. Antennas are better matched for this purpose because of their better antenna factor. A typical application of the SBA 9119 is the use as a (highly linear) broadband nearfield probe thanks to its small dimensions.

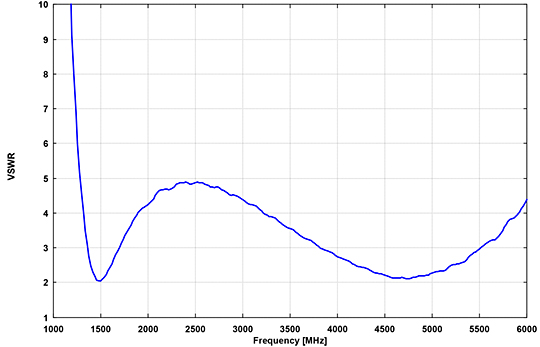

[split]

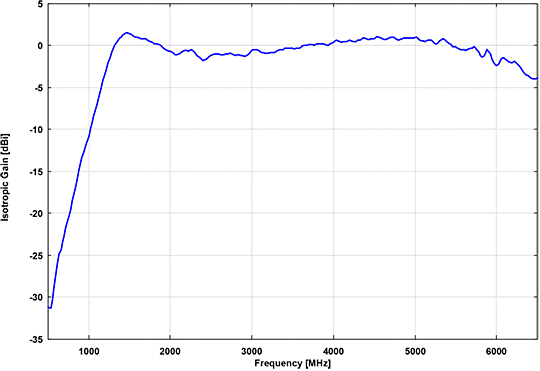

Isotropgewinn

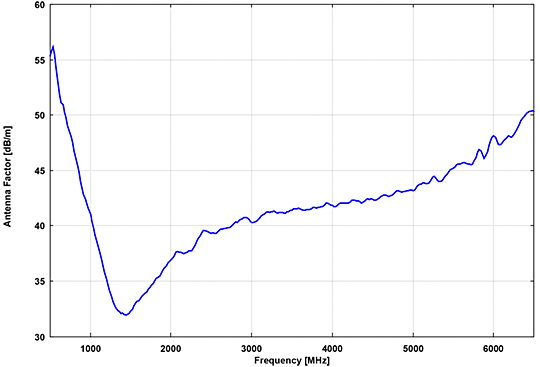

Antennen-Wandlungsmaß
