Schwarzbeck FESP 5133-1330 Magnetic Field Coil

Condition:
New
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



Availability:

Typically In Stock

SKU:
sku-1509



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The handheld coil FESP 5133-1330 was designed for immunity testing against magnetic fields up to approx. 20 kHz. The coil has 225 turns of Cu-wire on 15 layers. There are spacers to provide a constant distance of 50 mm between coil center and EuT-surface. The generated magnetic fieldstrength is directly proportional to the coil current. Typical applications are immunity tests according to method SF 01 G VG 95377.

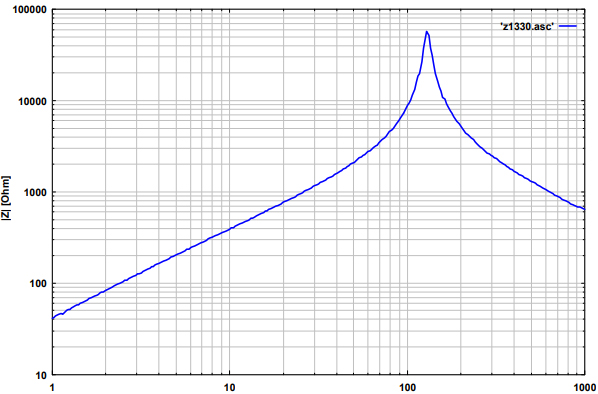

Magnitude of Source Impedance (Overview)

Schwarzbeck FESP 5133-1330 Magnetic Field Coil
Frequency [kHz]

Specifications
Number of turns 225
Wire diameter 2 mm
Maximum coil current 20 A
Max. magnetic fieldstrength at 50 mm spacing 17 kA/m
Magnetic fieldstrength at 1 A coil current in 50 mm distance 858.2 A/m
Required current for 1000 A/m in 50 mm distance 1.165 A
Magnetic flux density at 1 A coil current in 50 mm distance 1.078 mT
180.66 dBpT
Conversion current-magnetic fielstrength 58.67 dB/m
Mechanical dimensions 190x190x290 mm
Terminals 4 mm Banane
Length of connection cable 3 m
Usable frequency range 0 - 20 (50)kHz
Weight 5.3 kg
Medium coil diameter 126 mm
Medium coil distance to surface 50 mm
Inductance 6.5 mH
Resistance 0.5 ?
Capacitance 240-300 pF
Resonance frequency 120 kHz
Impedance |Z|=42 ? @ 1 kHz
