Schwarzbeck RS 16 Omnidirectional Antenna 1-6 GHz

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1805



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The Schwarzbeck RS 16 Omnidirectional Antenna 1-6 GHz. Vertical polarized microwave biconical antenna (0.5) 1 - 6 (8.5) GHz with omni directional H-plane pattern.

Schwarzbeck RS 16 Omnidirectional Antenna 1-6 GHz

Schwarzbeck RS 16 Omnidirectional Antenna 1-6 GHz

RS 16 Omnidirectional Antenna
Schwarzbeck RS 16 Omnidirectional Antenna 1-6 GHz

Schwarzbeck RS 16 Specifications
Vertical polarised microwave biconical broadband antenna with omnidirectional H-plane pattern.
Frequency range 1 - 6 GHz
Useable Frequency Range 0.5 – 8.5 GHz
Connector female 50 ? N
Mounting tube 22 mm

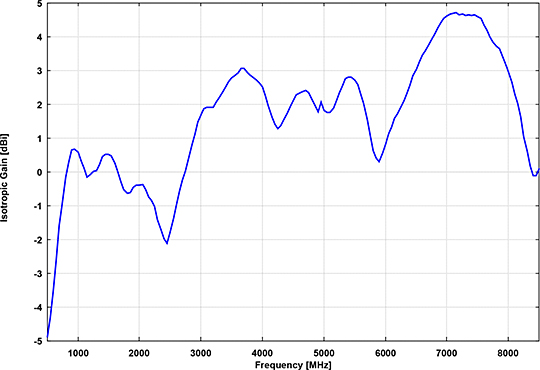

Isotropic gain typ. -2...+3 dBi

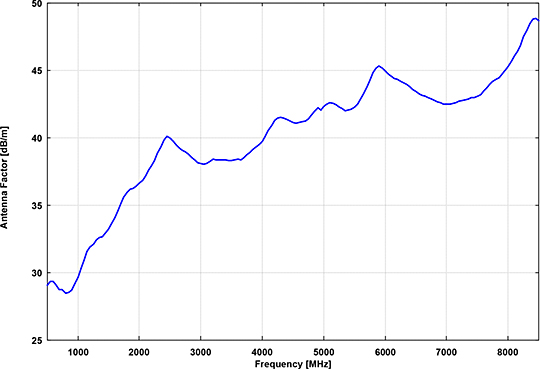

Antenna Factor 30 ... 45 dB/m

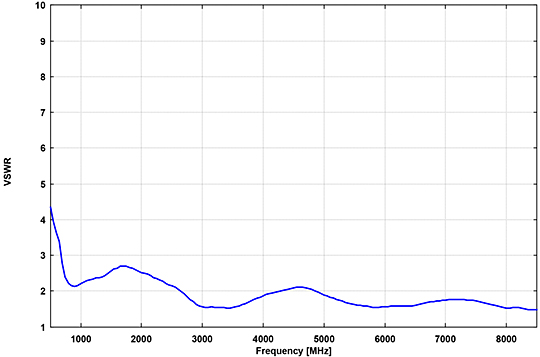

SWR typ. 2
SWR max. 3
Max. Input Power 50 W
Half-Power Beamwidth (E-plane) 80° - 50°
Weight 1 kg
