Schwarzbeck RE 4590 VHF-UHF Omnidirectional Antenna

Schwarzbeck RE 4590 VHF-UHF Omnidirectional Antenna

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1804



This product is available for shipping to North America and Western European countries.

Getting Started...

Check out our Google Reviews

Overview

Vertical polarised VHF-UHF biconical broadband antenna with omnidirectional H-plane pattern.

Schwarzbeck RE 4590 Specifications
Frequency range 450 – 1000 MHz
Useable Frequency Range 330 – 1100 MHz
Connector female 50 ? N
Mounting tube 22 mm
Isotropic gain typ. -2...+1.5 dBi
Antenna Factor typ. 25 ... 30 dB/m
SWR typ. 2...3
SWR max. 5
Max. Input Power 200 W
Half-Power Beamwidth (E-plane) 80° - 50°
Weight 800 g
Element Dimensions 140 x 140 x 255 mm
Total Height 662 mm

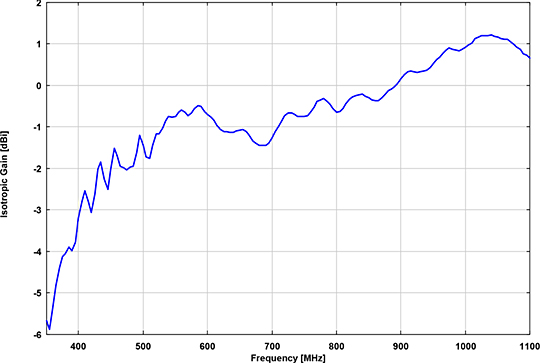

Isotropgewinn
Isotropgewinn

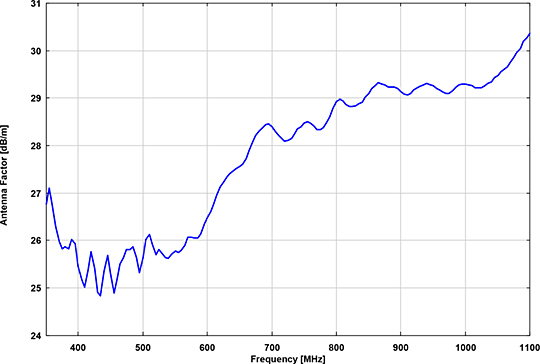

Antennen-Wandlungsmaß
Isotropgewinn

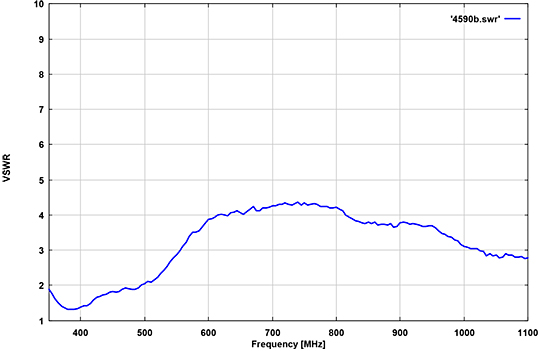

VSWR
Isotropgewinn

Key Considerations

Manufacturer:
Schwarzbeck
