Schwarzbeck HLX 0810-LHCP Helix Antenna

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1501



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

Circular polarized Helix Antenna with Aluminium Reflector Plate and N-Connector for Receive and Transmit Applications. Two Polarisation Directions are available (RHCP or LHCP, i.e. Right or Left Hand Circular Polarisdation).





Specifications
Nominal Frequency Range 750 MHz...1050 MHz
Usable Frequency Range 600 MHz...1.1 GHz

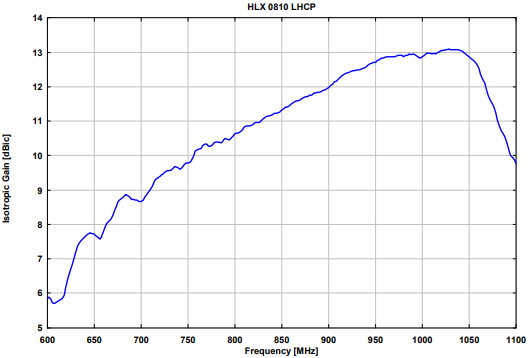

Isotropic Gain yp. 6 - 12 dBic

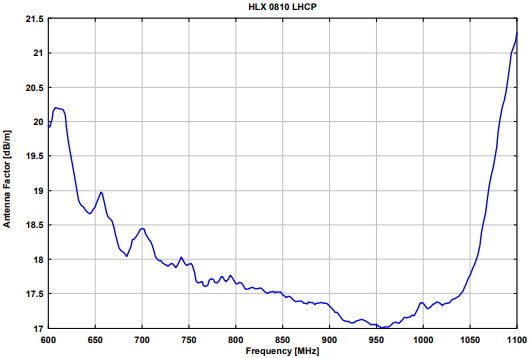

Antenna Factor typ. 17-20 dB/m
Nominal Impedance 50 ?
SWR max. < 2.2
SWR typical < 1.5
Front to Back Ratio typ. > 15 dB
3 dB Beamwidth typ. 56°-33°
6 dB Beamwidth typ. 70°-50°
Max. Input Power 300 W
N-Connector female
Mount (Tube) 22 mm, L=200 mm
Width x Length x Thickness 0.24 x 0.50 (+0.2) x 0.24 m
Weight 3.1 kg
Recommended Accessories AM 9144 Mast
AA 9202 / AA9203 Adapter
