Schwarzbeck FMZB 1519 Active Receive Loop Antenna

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1263



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

Active, shielded Loop Antenna with nearly constant antenna factor over the entire frequency range (9 kHz - 30 MHz), battery driven to minimize disturbance influence from power line. Combined with a CISPR 16 EMI-receiver a convenient fieldstrength measuring system with low noise and pulse measuring capabilities is composed.

The FMZB 1519 can also be used with a spectrum analyser. The shielded aluminium housing is equipped with rubber feet for desktop operation or can be mounted to a tripod using the female camera thread (3/8") at the bottom. A protection circuit against deep discharge provides a long battery lifecycle. The battery must be recharged after an automatic switch off. A full battery charging period using the recommended charger takes around 5 hours.

The PWR-switch must be set to OFF during the recharging period, otherwise no charging takes place! The charging connector is disabled while the PWR switch is set to ON (normal measuring operation), this avoids disturbances generated by the charger having an unwanted influence on the measurement.

Applications

The Active Loop Antenna FMZB 1519 can be used for the frequency selective measurement of magnetic fields (of fictious electric field) in the longwave, midwave and shortwave frequency ranges. It can be used for testing according to CISPR, MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

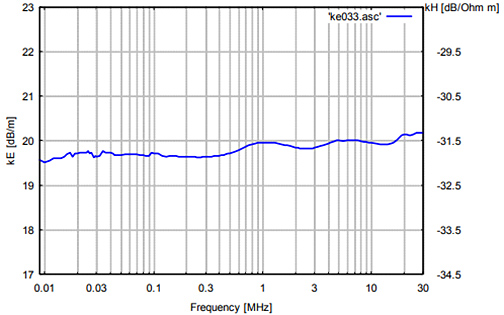

Typical Frequency Response

Typical Frequency Response

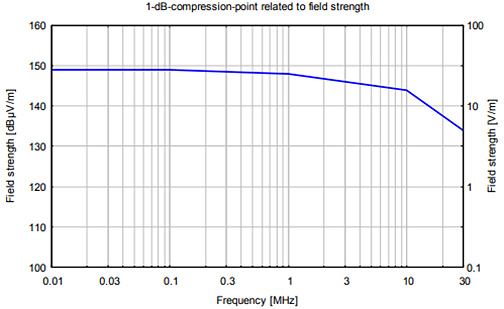

Typical 1-dB-compression-point

ypical 1-dB-compression-point

Noise Floor

Displayed noise level of the FMZB 1519 in reference to field strength, measured with a CISPR 16-1-1 compliant measuring receiver.

The uncorrected voltage display of an EMI-receiver in dBµV was added with the antenna factor for fic. Efieldstrength (+20 dB/m) to obtain the field strength-related noise-floor of the system. The figures show the measured noise floor related to field strength for the FMZB 1519 at the FCLE 1535 receiver for different detectors and bandwidths.

Add the desired signal-to-noise-ratio to calculate the sensitivity of the antenna.

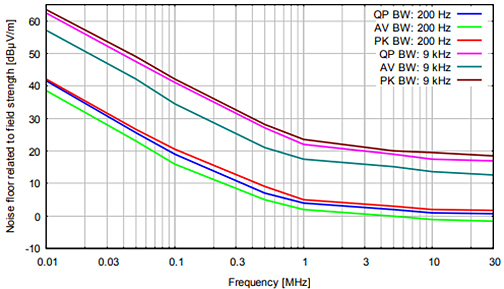

Noise Floor for Different Detectors and Bandwidths

Noise Floor for Different Detectors and Bandwidths

Specifications
Nominal Frequency range 9 kHz - 30 MHz
Connector female 50 ? N
Antenna Factor for fict. E - fieldstrength 20 dB/m
Antenna Factor for H - fieldstrength -31.5 dB/?m
Loop Diameter 0.5 m
Fieldstrength Measuring Range
QP-Detector / 9 kHz IF-Bandwidth
30-130 dBµV/m
Fieldstrength Measuring Range
AV-Detector / 200 Hz IF-Bandwidth
8-130 dBµV/m
Frequency Response < +/- 1 dB
Operation time with full Battery Capacity >20 h typ. 24 h
Battery 12 V Pb 2.4 Ah
Recommended Charger AL 300pro
Operation Indicator Green LED > 10.2 V
Batt. Reserve Indicator LED red and green 9.8 V - 10.2 V
Automatic Switch Off LED red (terminating) < 9.8 V
Mounting Thread 3/8"
Dimensions 520 x 615 x 160 mm
Weight 4.0 kg
