Schwarzbeck UBAA 9115 VHF-UHF Broadband Balun / Holder

Frequency Range:
20 MHz - 1200 MHz
Antenna Factor:
18 - 23 dB/m
Power:
5 W
Connector:
N - Type
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1817



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

Schwarzbeck UBAA 9115 VHF-UHF Broadband Balun / Holder

The 4:1 Balun/Holder UBAA 9115 can accept both biconical elements (e.g. BBVU 9135 or BBUK 9139) and open cone elements (e.g. BAOC 9216 and BBOC 9217). The balun was especially designed to achieve an extremely high degree of symmetry, which is very important at lower frequencies. In contrast to a 1:1 balun the 4:1 balun provides a better antenna factor at low frequencies and an improved bandwidth, though small elements are used. The wide bandwidth and the fixed center of radiation help to make convenient measurements without antenna changes. Thanks to the small size UBAA 9115 can be used as a passive field sensor. Reduced Losses (with also good symmetry) can be achieved with the balun/holder UBAA 9114. The dimensions and element fixtures of both baluns are identical in order to accept the same elements.

Schwarzbeck UBAA 9115 Application:

The high symmetry balun UBAA 9115 is most often used with the compact biconical elements BBVU 9135 or BBUK 9139. The biconical antenna is especially valuable for convenient broad band evaluations of anechoic chambers or open area test sites. In combination with the battery driven spectrum generator SG 9301 or the pulse generator IGUF 2910, a portable reference radiator is available, which can also be used for test site assessments.

Specifications
Frequency Range, nominal 30 - 1000 MHz
Frequency Range, usable 20 - 1200 MHz
VSWR, f > 300 MHz, via 3 dB pad < 2
Antenna Factor
(depending on elem. type in use)
18 - 23 dB/m
Length holder LH=540 mm
Width depends on elements used (see table in Datasheet)
Antenna shaft (Tube) Æ 22 mm
Total weight 0.83 kg
Power (EMC TX) 5 W
Coaxial Connector N-Buchse / N - female
Recommended Accessories BBVU 9135 Biconical Elements
BBUK 9139 Biconical Elements
BAOC 9216 Open-Cone Elements
BBOC 9217 Open-Cone Elements

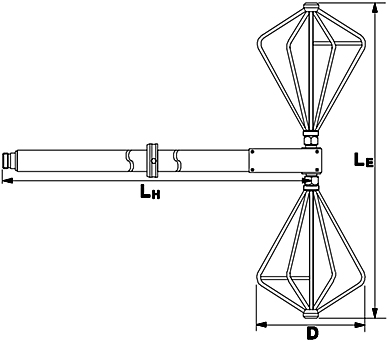

Biconical Elements
Schwarzbeck UBAA 9115 Biconical Elements
Open Cone Elements
Schwarzbeck UBAA 9115 Open Cone Elements
