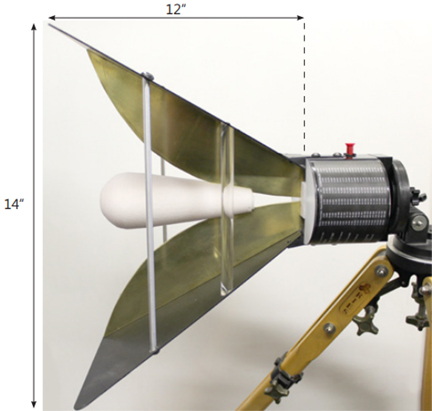

Diamond Engineering DE0726 700MHz - 26GHz Broadband Reference Horn Antenna

DAMs Broadband Reference Horn

The digitally optimized DE0726 features a dielectric lens system which dramatically improves beam profile and gain. The impedance is 50 ohms from DC to the band. The horn can be used for measurement and communications. The excellent match and monotonic gain provide a unique combination of application and performance.

Typical Profiles

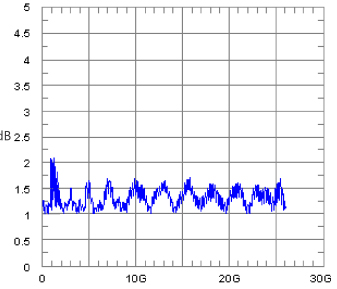

Typical Gain, VSWR for AZ-EL (0,0) plus normalized beamwidth profiles

Gain (dBi)	VSWR

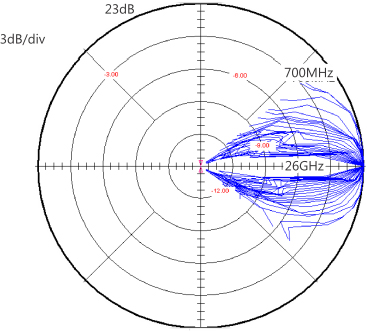

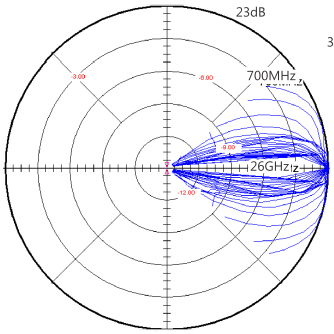

E-Plane Contours	H-plane Contours

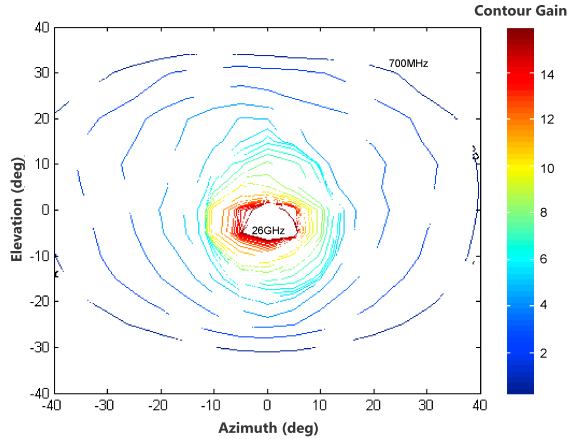

Typical 3dB Beam Profiles 700MHz to 26GHz

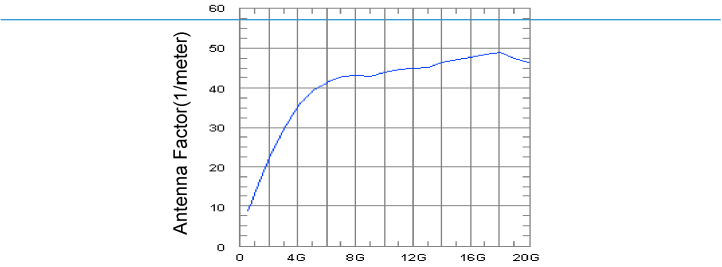

Antenna Factor Plot

In this video we examine the characteristics of the Diamond Engineering DE700_26 test horn.
