Overview
The Schloder test generator CWG 1500 simulates high energy interference impulses. It can be used for EMC tests on installations and equipment according to the standards IEC 61000-4-5, 2014 and EN 61000-4-5, 2014
The CWG 1500 is a combined surge current / voltage generator creating at idle mode a standard surge voltage with the pulse shape 1,2 / 50 µs and a surge current with the pulse shape 8 / 20 µs. The values for voltage and current are displayed, for oscillographic investigations BNC-jacks for voltage and current monitoring are located on the rear. With the built-in single-phase coupling network the interference impulses of the surge generator can be coupled on the mains of the connected EUT’s.
All parameters can be adjusted easily and clearly. With the aid of the memory key up to 32 adjustments can be directly activated - via serial interface the generator can also be operated by a personal computer.
Schloder CWG 1500 CDN Options:
- CWG 520 (4x16A) 3-phase coupling network
- CWG 523 (4x32A) 3-phase coupling network
- CWG 524 (4x60A) 3-phase coupling network
- CWG 1526-4 (4A) CDN for 2 data line
- CWG 1526-10 (10A) CDN for 2 data line
- CWG 1528 6A) CDN for 4 data line, RS 232

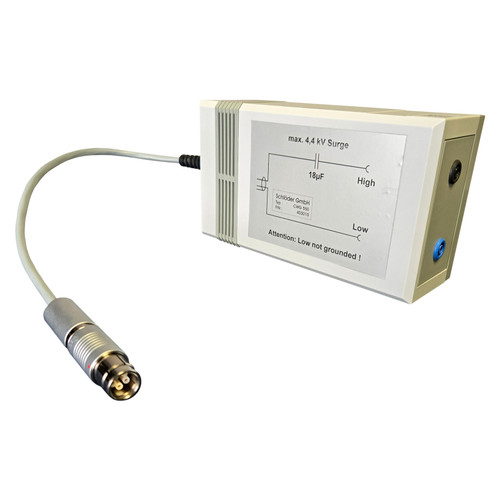

- CWG 550 18 µF capacitor in a housing
- EMC-SOFT Control software
