Langer EMV ICI 03 L-EFT Set IC EM Pulse Injection

Manufacturer:
Langer EMV
Repetition frequency:
0.1 Hz - 20 kHz
Rise time:
< 2 ns
Polarity (set by software):
+ / - / alternating
Trigger-pulse delay (typ.):
100 ns - 450 ns
Trigger-pulse delay (Timer Mode):
200 ns - 100 ms
Trigger delay, min. increment:
10 ns
Supply Voltage:
BPS 202
Software:
BPS 202-Client / DLL (32 Bit / 64 Bit) Win XP SP3 or higher



No reviews yet Write a Review
Availability:

In Stock

SKU:
2511-4





Due to tariff increases, some items in our catalog are subject to additional costs when purchased.

Getting Started...

Check out our Google Reviews

Overview

The Langer EMV ICI 03 L-EFT Set consists of three different ICI sources emitting electric, magnetic field and current pulses. This allows high precision and very high resolution IC analysis and body bias injection. These sources allow side channel analysis e.g. to test security-critical circuits. Special features include very high resolution probe tips (allowing for the testing of extremely small areas) and a very low trigger to pulse jitter (allowing for the disruption of very specific points in the program sequence).

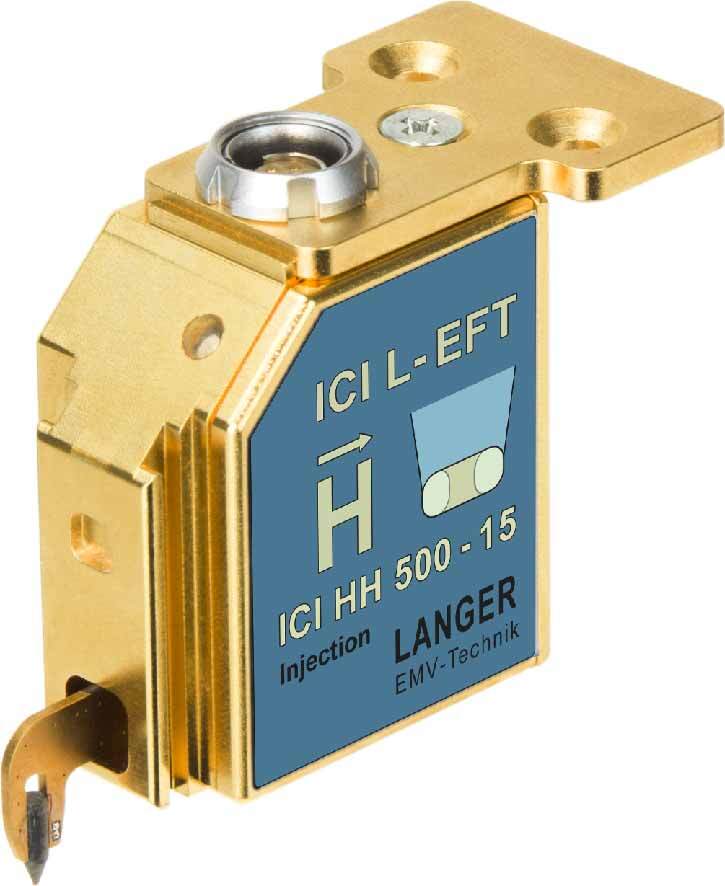

ICI HH500-15 L-EFT Pulse Magnetic Field Source

ICI HH500-15 L-EFT, Pulse Magnetic Field Source
The ICI HH500-15 L-EFT pulse magnetic field source couples fast transient pulses into a test IC (open die). This allows for electromagnetic fault injection (EMFI) attacks or testing the immunity of individual areas of the IC.

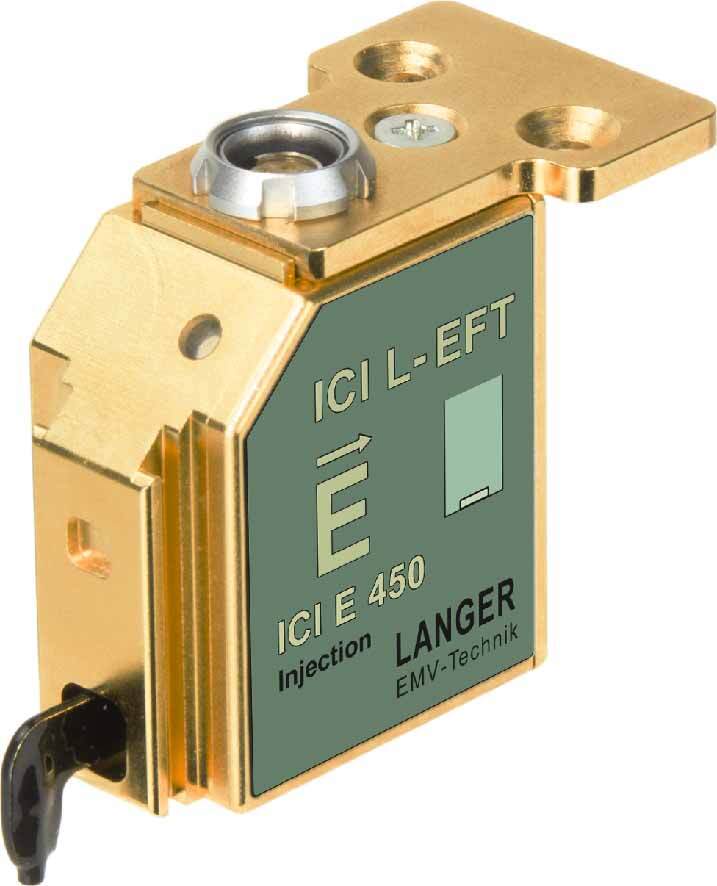

ICI E450 L-EFT set Pulse E-Field Source set

ICI E450 L-EFT, Pulse E-Field Source
The ICI E450 L-EFT pulse electric field source couples fast transient pulses into a test IC (open die). This allows for fault injection attacks or testing the immunity of individual areas of the IC.

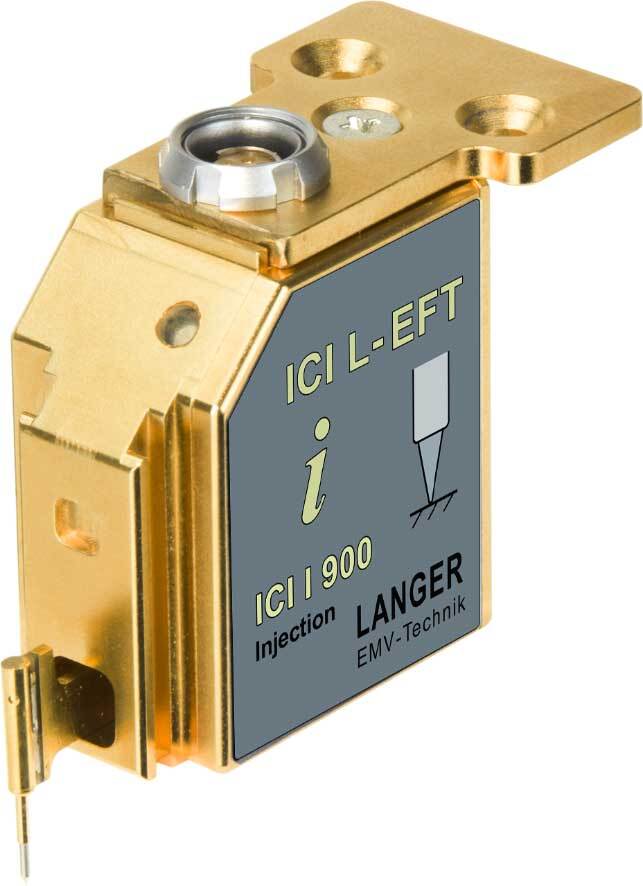

ICI I900 L-EFT Pulse Current Source (FBBI)

ICI I900 L-EFT, Pulse Current Source (FBBI)
The ICI I900 L-EFT pulse current source couples fast transient pulses into a test IC (Forward body biased injection). This source allows for side channel analysis or testing the immunity of individual areas of the IC.

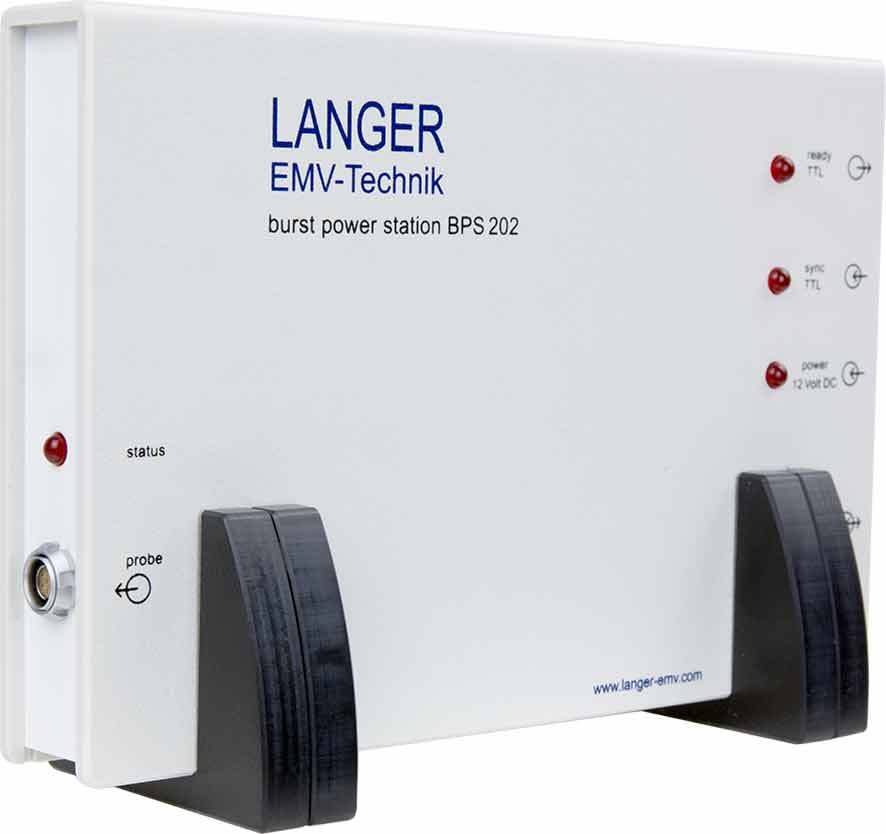

BPS 202 Burst Power Station

BPS 202
Burst Power Station
The BPS 202 is used as power supply and control unit for the Langer EMV-Technik GmbH pulse probes. The control unit is connected to the user PC via an USB interface. BPS 202-Client software does the controlling.

With the BPS 202 input “sync” interference pulses of the connected probes can be synchronized on the functional process of an IC.

Adjustment of the pulse frequency and pulse current

  • Single pulse or pulse sequence
  • External triggering possible
  • Adjustable trigger delay
 BPS 202-Client BPS 202-Client Software / USB
 BPS 202-Client Client Software/ USB
The BPS 202-Client software is used to control the BPS 202 Burst Power Station and thereby the connected probe. The software is installed on the user PC.

Scope of delivery:

1x ICI HH500-15 L-EFT, Pulse Magnetic Field Source
1x ICI E450 L-EFT, Pulse E-Field Source
1x ICI I900 L-EFT, Pulse Current Source (FBBI)
1x BPS 202, Burst Power Station
1x BPS 202-Client, BPS 202-Client Software / USB
1x NT Ex EU, Power Supply Unit
1x ICI 01 L-EFT acc, Accessories
1x ICI case, System Case
1x ICI m, ICI Set User Manual

Key Considerations

Manufacturer:
Langer EMV
Repetition frequency:
0.1 Hz - 20 kHz
Rise time:
< 2 ns
Polarity (set by software):
+ / - / alternating
Trigger-pulse delay (typ.):
100 ns - 450 ns
Trigger-pulse delay (Timer Mode):
200 ns - 100 ms
Trigger delay, min. increment:
10 ns
Supply Voltage:
BPS 202
Software:
BPS 202-Client / DLL (32 Bit / 64 Bit) Win XP SP3 or higher
