Schwarzbeck HFSL 7101 Active Magnetic Field Probe

Condition:
Used
Frequency Range:
9 kHz - 30 MHz
Coaxial cable connector:
50 Ω
Antenna Factor for fict. E-fieldstrength:
typ. 61.5 - 69.5 dB/m
Frequency response:
typ. +/- 4 dB
DC separator:
EW 7110
AC/DC adapter:
ACDC 7110
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



Availability:

Inquire for Availability

SKU:
sku-1404



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The active, handheld magnetic field probe HFSL 7101 was designed to locate sources of disturbance on printed circuit boards and in electric installations e.g. in electric control cabinets. It is further suitable for general purpose magnetic field measurements as required by railway standards and others. Because of its small dimensions the probe is able to localize disturbance sources very accurate. Maximum indication is given if the magnetic field lines are orthogonal to the front cap of the probe (see picture). The small dimensions are also helpful in all applications with limited space. The field probe is energized via a AC/DC separator EW 7110 from an AC/DC adapter ACDC 7110.

Specifications
Nominal frequency range 9 kHz - 30 MHz
Coaxial cable connector 50 ? BNC

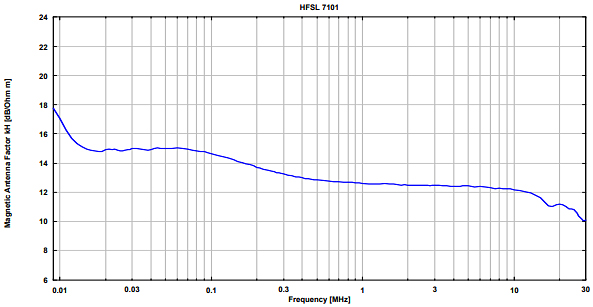

Antennna Factor for H-fieldstrength typ. 10-18 dB/?m
Antenna Factor for fict. E-fieldstrength typ. 61.5 - 69.5 dB/m
Max. fieldstrength measuring range 117 dBµA/m
0.7 A/m
Diplayed noise level at 1 MHz, QPdetector, 9 kHz - 6 dB bandwidth 15 dBµA/m
6 µA/m
Diplayed noise level at 1 MHz, AVdetector, 9 kHz - 6 dB bandwidth 10 dBµA/m
3.2 µA/m
Diplayed noise level at 100 kHz, QP-detector, 200 Hz - 6 dB bandwidth 8 dBµA/m
2.5 µA/m
Diplayed noise level at 100 kHz, AV-detector, 200 Hz - 6 dB bandwidth 5 dBµA/m
1.8 µA/m
Frequency response typ. +/- 4 dB
Cable length 2 m
Dimensions body with cable guide 25 x 25 x 135 mm
Weight 142 g
DC separator EW 7110
AC/DC adapter ACDC 7110
