Overview
The Schwarzbeck FSHPH is a passive, single-axis H-field probe suited for non-ionizing radiation measurements according to BGVB11, ICNIRP, IEEE C95.1, FCC 96-236 and others. The FSHPE allows a fast and accurate safety-evaluation of the measurement environment. The FSHPH is ready for operation with the popular handheld spectrum analysers FSH3/6 and FSH4/8 from Rohde & Schwarz or similar devices.
An RF-transparent radome cover protects the FSHPH from dust and moisture. Because of its lightweight construction the FSHPH can be directly mounted to the spectrum analyser. Alternatively the FSHPH can be held manually at its 50 mm shaft (sweeping method) or attached to a mast or tripod using the 22 mm tube (rotation method or raster method).

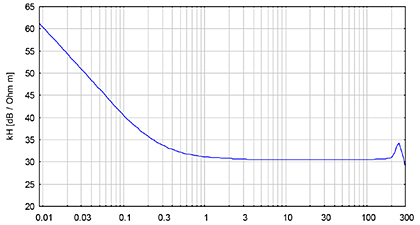

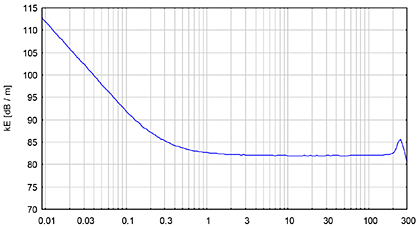

| Magnetic Antenna Factor | Electric Antenna Factor |
 |  |
| Frequency [MHz] | Frequency [MHz] |

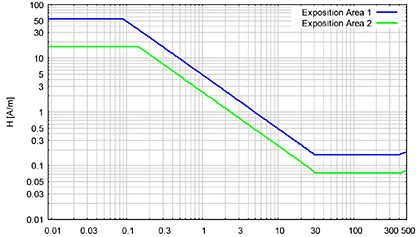

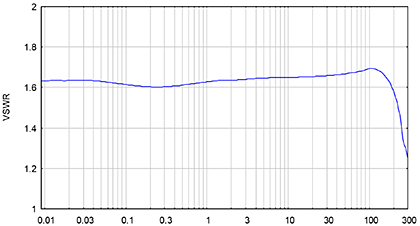

VSWR at N-Connector | BGV B11: Max. Magnetic Fieldstrength Exposition Area 1 and 2 |
 |  |
| Frequency [MHz] | Frequency [MHz] |
| Specifications | |
| Frequency Range | 9 kHz - 300 MHz |
| Coaxial Connector (female) | N |
| Antenna Factor for fictious E-fieldstrength | 23...60 dB/ Ohm m |
| Antenna Factor for fictious E-fieldstrength | 74,5...111,5 dB/m |
| VSWR | typ. < 1.7 |
| Dimensions | 510 x 145 x 80 mm |
| Weight | ca. 750 g |
| Environmental Conditions | -10°C - +50°C, IP54 |
