Overview

The SY9223-120 is a balun including a resistive adaption part. It transforms an asymmetrical 50 ? signal (N-connector) into a symmetrical 120 ? environment (screw terminals).

This balun can be used for transmission measurements according to IEC 61643-21. It is capable to handle a frequency range that is significantly larger than the standard requires.

The excellent frequency response (typically < ±0.25 dB per balun) and the very good standing wave ratio of < 1.2 may be emphasized.

To measure the transmission two SY 9223-120 have to be used.

Please note: The balun is not galvanically isolated!

Specifications
Nominal Frequency Range 30 MHz - 250 MHz
Useable Frequency Range 10 MHz - 900 MHz
Attenuation (50 ?) per balun 9.5 dB ±1.0 dB
Max. power 500 mW
Impedance transformation 50 ? : 120 ?
Dimensions 75 mm x 35 mm x 26 mm
Weight 96 g
Input return loss min. 20 dB
Input connector N-female: 50 ?
Output connector 120 ?
Housing Aluminium

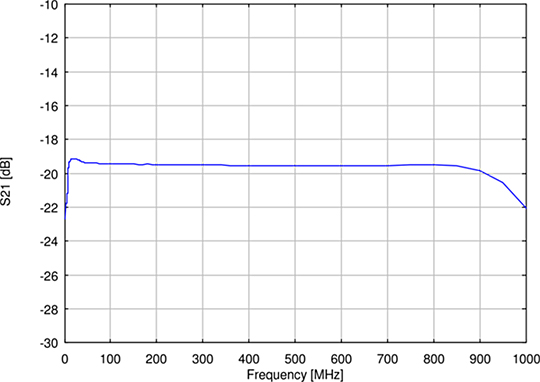

Transmission of two balun “back to back”

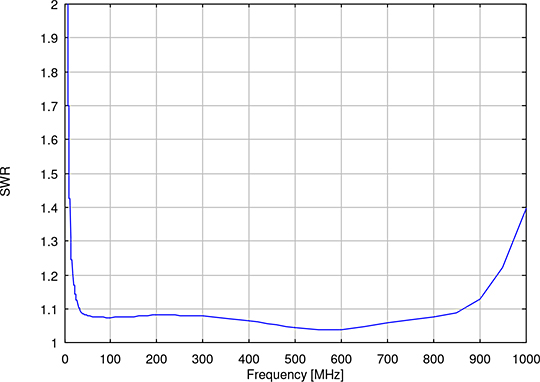

Return loss at the 50 ? input with 120 ? load
