Schwarzbeck UHA 9125 C Dipole Total Length of 150mm, Shorting Bar Max. Rear Pos.

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1809



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The Schwarzbeck UHA 9125 C Dipole Total Length of 150mm, Shorting Bar Max. Rear Pos.

Schwarzbeck UHA 9125 C Directional Patterns

Directional Patterns - Schwarzbeck UHA 9125 C  Dipole Total Length of 150mm, Shorting Bar Max. Rear Pos.

Directional Patterns - Schwarzbeck UHA 9125 C  Dipole Total Length of 150mm, Shorting Bar Max. Rear Pos.

Due to unwanted, but unavoidable reflections at mast adapter, indexing ring and cable etc. the shown directional patterns deviate somewhat from the theoretical pattern shape (typically less than 1 dB). The H-plane pattern of an ideal half-wave dipole is circular. The half power beamwidth (- 3 dB) of the ideal half-wave dipole is 78°. The reflections in the antennas' direct surrounding increase the gain figure in forward direction (to the right in the above sketch) by +0.5 dB typically (theoretical isotropic gain of a half-wave dipole: 2.15 dBi).

Tuned Half Wave Dipole with EMI-Balun 0.75 - 2 GHz

Schwarzbeck UHA 9125 C

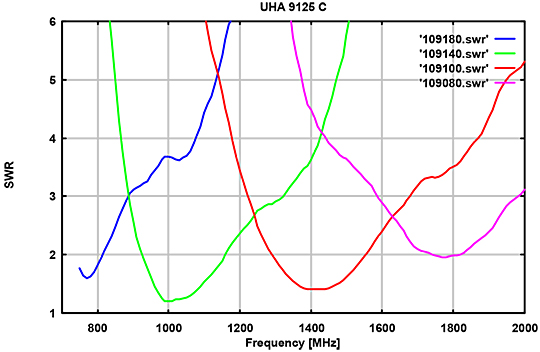

Insertion of an attenuator is advisable if the equipment presents a high internal SWR (e.g. in the 0 dB position of an internal step attenuator. In this case the attenuation must be added to the antenna factor (dB/m) or subtracted from the gain (dBi, dBd)

Serial Number 9125C109
Test result o.k.
Operator Dipl.-Ing. D. Schwarzbeck
