3ctest EDS MAX20 Electrostatic Discharge Simulator

3ctest EDS MAX20 ESD Simulator Gun

Condition:
New
Test Standards:
IEC/EN 61000-4-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61326, IEC 61340-3-1, ISO 14304, ITU-T K.20, Bellcore GR-1089-Core
Test Voltage:
0.5 k V - 20 k V (± 5%)
Frequency:
Single, 0.1 Hz, 0.2 Hz, 0.5 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz
Battery Charge time:
Approx. 5 h
Pre-programmed Test Routines:
According to IEC 61000-4-2
Applications:
EMC Precompliance Testing, Electrostatic Discharge Immunity
Manufacturer:
3ctest
$475.00



SKU:
141241-RE
Availability:

Typically In Stock

Getting Started...

Overview

The EMC Shop is the only stocking distributor of 3ctest equipment in North America. The EDS MAX20 is the newest electrostatich discharge simulator on the market (launched in 2024 in sync with latest version of IEC 61000-4-2).

The EDS MAX20 from 3CTEST sounds pretty impressive! With a test voltage of up to 20 kV, a high-definition color screen, and a compact design, it seems like a great choice for those looking for an electrostatic discharge simulator that's both powerful and user-friendly. Plus, with impeccable waveforms and an intuitive UI design, testing for compliance with standards like IEC 61000-4-2 just got a whole lot easier.

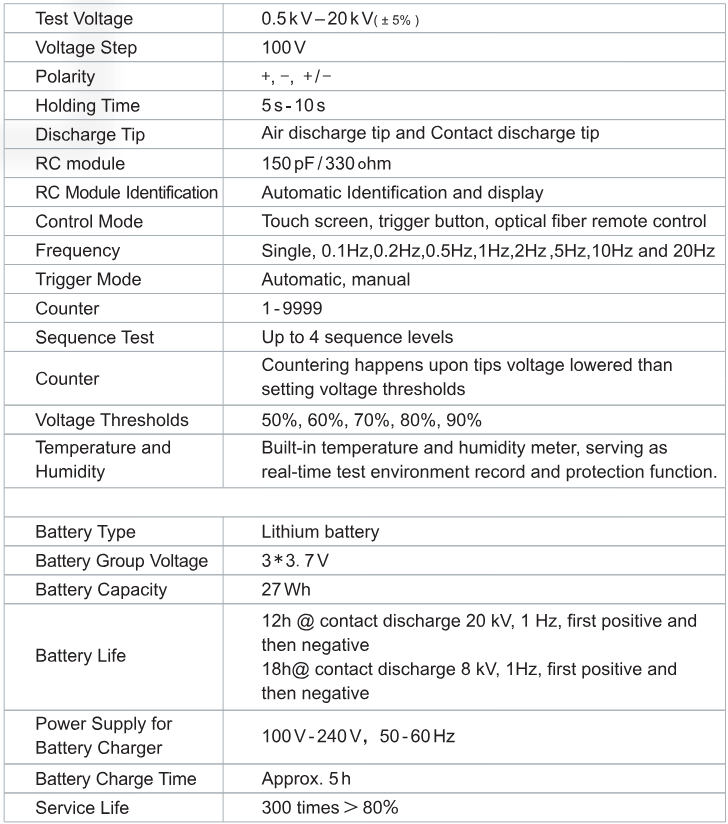

EDS MAX20 Specifications:

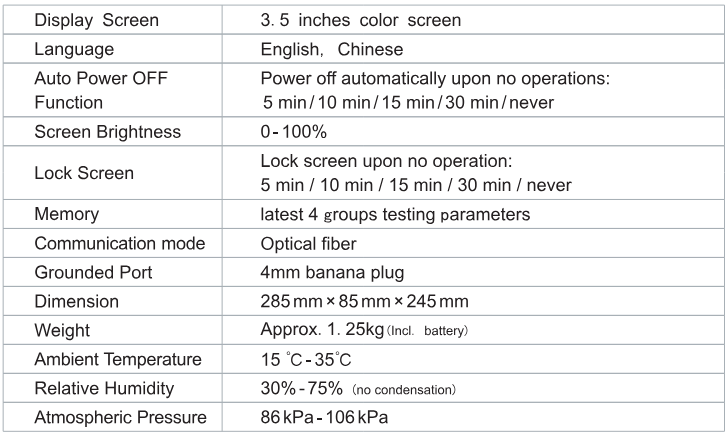

General Parameters:

Includes:

  • Calibration Certificate with Data
  • User Manual
  • RC module - 150 pF / 330ohm
  • Isulated casing gun head module
  • Air discharge tip
  • Contact discharge tip
  • Lithuium battery packs (Quantity: 2)
  • Battery charger
  • Base support
  • Electrostatic suitcase
  • Grounding line
Teseq NSG 437 ESD Simulator for IEC 61000-4-2 and ISO 10605 - Rental

Sold out
Teseq NSG 437 ESD Simulator for IEC 61000-4-2 and ISO 10605 - Rental

Sold out
Teseq NSG 437 ESD Simulator for IEC 61000-4-2 and ISO 10605 - Rental

Sold out

Videos

Key Considerations

Manufacturer:
3ctest
Test Standards:
IEC/EN 61000-4-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61326, IEC 61340-3-1, ISO 14304, ITU-T K.20, Bellcore GR-1089-Core
Test Voltage:
0.5 k V - 20 k V (± 5%)
Frequency:
Single, 0.1 Hz, 0.2 Hz, 0.5 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz
Battery Charge time:
Approx. 5 h
Pre-programmed Test Routines:
According to IEC 61000-4-2
Applications:
EMC Precompliance Testing, Electrostatic Discharge Immunity
