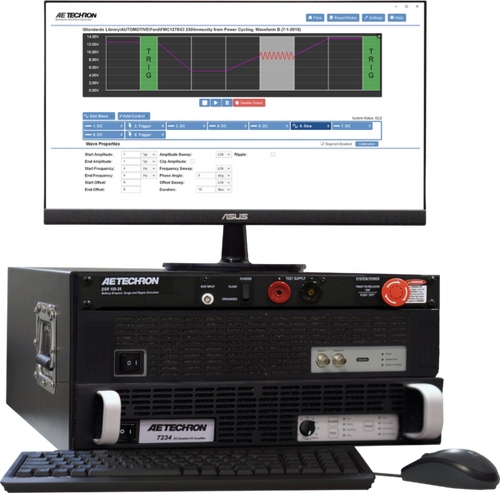

MIL-STD-461 CS101 Test Setup and Equipment Rental Package

MIL-STD-461 CS101 Test Setup and Equipment Rental Package

Condition:
Used
SKU:
BNDL-TES-MILSTD461-CS101-002-RE-MO
Availability:
Usually ships in 24 hours.
Manufacturer:
The EMC Shop
Test Standards:
MIL-STD-461 CS101
Applications:
Conducted immunity and susceptibility, EMC precertification testing
Frequency Range:
30 Hz to 150 kHz (Extendable down to 2 Hz and up to 500 kHz)
Test Setup:
Quick Start Guide Provided
No reviews yet Write a Review
$1,975.00

Overview

The EMC Shop will provide a turnkey package with the hardware and software needed to run MIL-STD-461 CS101 tests.

MIL-STD-461 CS101 Test Equipment Setup Requires:

  1. Signal generator
  2. Power amplifier
  3. Coupling transformer
  4. Capacitor, 10 μF
  5. Isolation transformer
  6. Resistor, 0.5 ohm
  7. LISNs (Optional)
  8. Oscilloscope or measurement receiver (Optional)
  9. Transducer for measurement receiver (See PRD-240)

Downloads

Key Considerations

Manufacturer:
The EMC Shop
Test Standards:
MIL-STD-461 CS101
Applications:
Conducted immunity and susceptibility, EMC precertification testing
Frequency Range:
30 Hz to 150 kHz (Extendable down to 2 Hz and up to 500 kHz)
Test Setup:
Quick Start Guide Provided
