Overview
The Schwarzbeck HWRD750 Double Ridged Broadband Horn Antenna with waveguide flange WRD750.

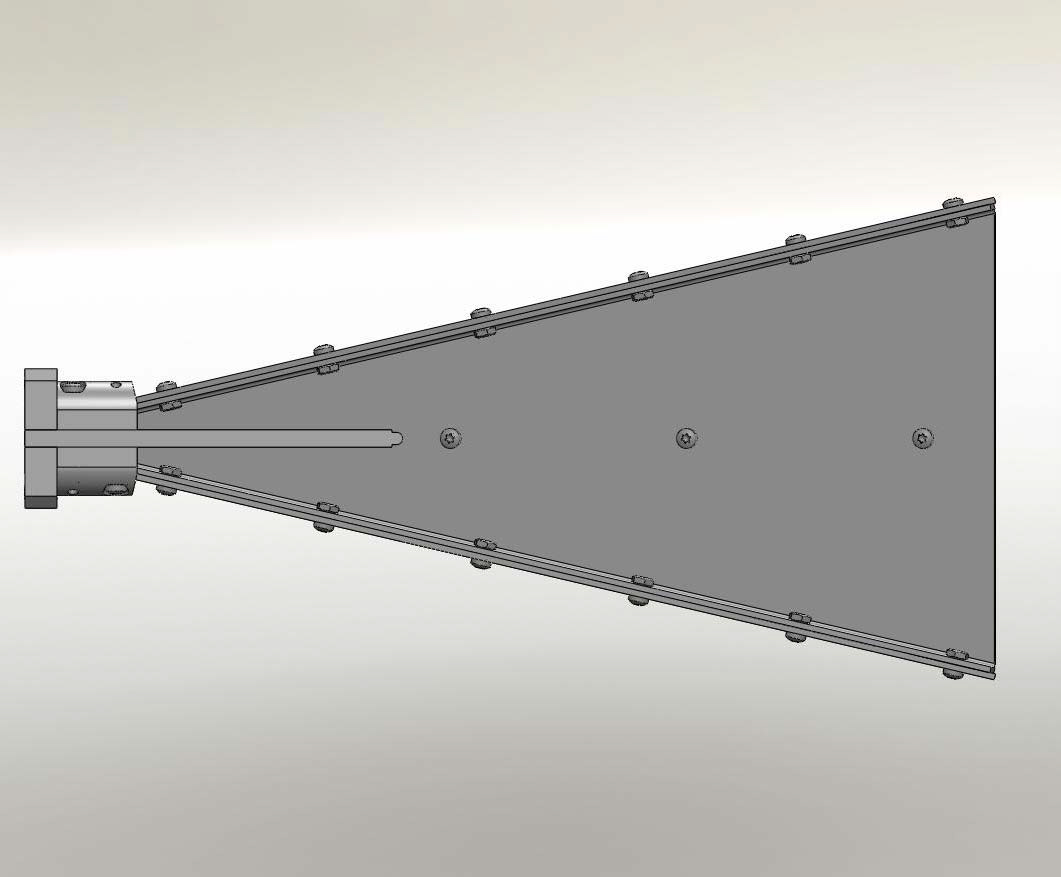

Side View (Horizontal Polarisation)

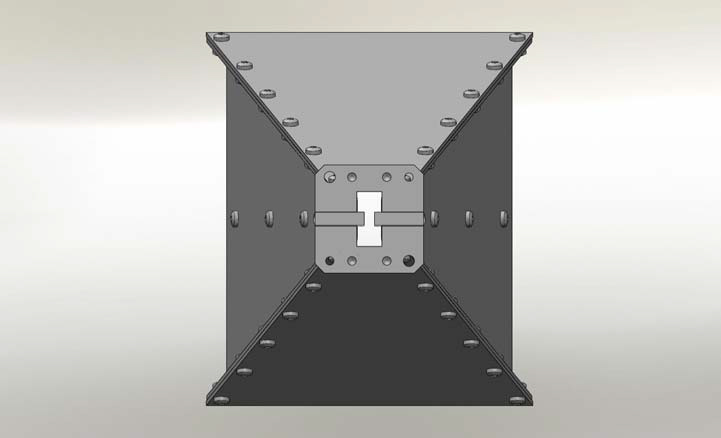

Back View with WRD750D24 Flange (Horizontal Polarisation)
| Schwarzbeck HWRD750 Specifications | |
| Type | Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium with waveguide flange. |
| Nominal Frequency Range | 7.5...18 GHz |
| Isotropic Gain | 16 ... 21 dBi |
| Antenna Factor | 31 ... 37 dB/m |
| Nominal Impedance | 50 ? |
| Standing Wave Ratio SWR typical | 1.2 |
| Standing Wave Ratio SWR max. | < 2 (8-18 GHz) |
| Front to Back Ratio | typ. > 30 dB |
| Cross Polarisation | typ. > 30 dB |
| 3 dB Beamwidth typ. (E-Plane) | 12°-19° |
| 3 dB Beamwidth typ. (H-Plane) | 12°-20° |
| 6 dB Beamwidth typ. (E-Plane) | 20°-30° |
| 6 dB Beamwidth typ. (H-Plane) | 20°-30° |
| Max. Input Power | 1 kW cont. |
| SMA-Connector female | WRD750D24 |
| Mount | Waveguide |
| Width x Length x Thickness | 124 x 241 x 104 mm |
| Weight | 390 g |
