• Extends frequency range down to 4 kHz

• Designed for conducted RF immunity and BCI testing

• Compatible with current injection probe setups

• Ensures proper signal coupling at low frequencies

• Supports accurate and repeatable EMC measurements

• 6 dB Fixed attenuation

• DC to 3 GHz Frequency range

• 50 W Power handling

• N Type (Male/Female) Connector type

• Low VSWR for stable signal performance

• 20 dB Fixed attenuation

• DC to 3 GHz Frequency range

• 50 W Power handling

• N Male to N Female Connector type

• Provides reliable signal attenuation and impedance matching

• Designed for PLC measurements per ITU-T G.9901

• 3 kHz to 148.5 kHz Frequency range

• Defined impedance for asymmetrical disturbance measurements

• 50 Ω BNC output for measurement equipment

• High current capability: up to 16 A

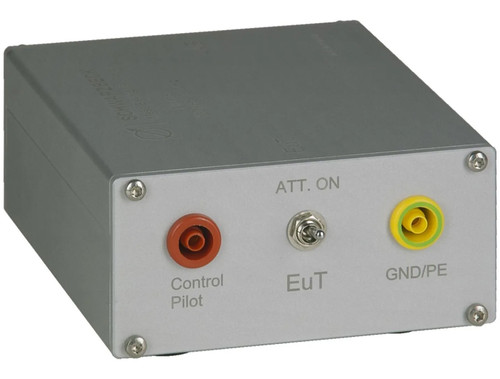

• Designed for PLC disturbance measurements per IEC 61851-21-2

• Frequency range: 150 kHz to 30 MHz

• Defined impedance: 150 Ω (with 100 Ω PLC connection)

• Integrated attenuator for improved impedance matching

• Provides decoupling between EUT and associated equipment (AE)

• Automotive AMN (LISN) compliant with Toyota TSC7042G

• Frequency range: 9 kHz to 30 MHz

• Defined impedance using 5 µH / 0.5 µH network

• Configurable inductance via external coil (K1, K2)

• Approx. 0.09 µH inductance with K1–K2 jumper

• Acceptable alternative for radiated immunity testing in a reverberation chamber

• IEC 61000-4-21MIL-STD-461 RS103DO-160 Section 20.6

• EMC Precompliance Testing, Radiated Emissions, Radiated Immunity

• Available for our larger tents up to 10' by 20' by 10'

• Generates DC to 30 kHz magnetic fields

• Helmholtz coil design for high field uniformity

• Large test area for DUT placement

• Suitable for magnetic field immunity testing

• Compatible with external signal sources and power amplifiers

• Compliant with IEC 61000-4-6 and GB/T 17626.6

• Designed for RF signal decoupling in conducted immunity testing

• Frequency range: 150 kHz to 230 MHz

• High attenuation performance across the operating range

• Clamp-on design for quick and easy installation

• Compliant with CISPR 16-1-4:2019

• Designed for common-mode disturbance suppression

• Wide usable frequency range from 10 MHz to 1 GHz

• Stable attenuation characteristics for repeatable testing

• Suitable for coaxial and unshielded cables

• Supports P1 (12V / 24V) and P2a transient pulse simulation

• Compliant with ISO 7637-2 automotive transient standards

• Wide output pulse range up to ±660V

• Adjustable rise time and pulse duration

• High current capability for realistic load conditions

• Compliant with IEC/EN 61000-4-2

• Designed for ESD air discharge voltage measurement

• Maximum test voltage up to 30 kV

• High input impedance (20 GΩ / 3 pF)

• Stable attenuation ratio for accurate and repeatable measurement
