ISO 11452 is the standard and procedure for testing automotive and EV cars, components and sub-assemblies. Sections provide test process for certain electrical and wireless phenomena while provideed guidance on determning product test levels and pass/fail criteria.

The EMC Shop stocks test equipment, as well as shielded enclosures for precompliant testing. Rentals of certain ISO 11452 sections can be shipped the same day, to allow customers to being measuring and troubleshooting immediately.

ISO 11452 consists of the following parts, under the general title Road vehicles — Component test methods for electrical disturbances from narrowband radiated electromagnetic energy:

— Part 1: General principles and terminology
— Part 2: Absorber-lined shielded enclosure
— Part 3: Transverse electromagnetic mode (TEM) cell
— Part 4: Harness excitation methods
— Part 5: Stripline
— Part 7: Direct radio frequency (RF) power injection
— Part 8: Immunity to magnetic fields
— Part 9: Portable transmitters
— Part 10: Immunity to conducted disturbances in the extended audio frequency range
— Part 11: Reverberation chamber

ISO 11452 Categories

ISO 11452-2 Shielded Room & Test Apparatus

ISO 11452-4 BCI Test

ISO 11452-8 Magnetic Immunity

ISO 11452-10 Immunity to Audio Frequencies

ISO 11452 Test Equipment, Systems & Solutions

3ctest D1550 Stripline for ISO 11452-5 Road Vehicles, 50Ω

SKU: sku-562

Connector type: N 50 Ω

Dimensions: 4.30 x 1.5x 1.05 m, .95 m table height

Distance between the plates: 150 mm

Frequency range: 0 GHz - 1 GHz

Max. input power: 1000 W

Standards Met: ISO 11452-5

Stripline: Conform with ISO 11452-5

Typical impedance: 50 Ω

Typical VSWR (30 - 1000 MHz): Better than 1.22

View Product Cart
ISO 11452-8 Turn Key Solution for Immunity to Magnetic Field EMC Testing

SKU: sku-463

View Product Cart
ISO 11452-5 Turn Key Solution for Stripline Immunity EMC Tests

SKU: sku-462

View Product Cart
ISO 11452-3 Turn Key Solution for Transverse electromagnetic (TEM) Cell EMC Testing

SKU: sku-461

View Product Cart
ISO 11452-2 Turn Key Solution for Absorber-lined Shielded Enclosure

SKU: sku-460

View Product Cart

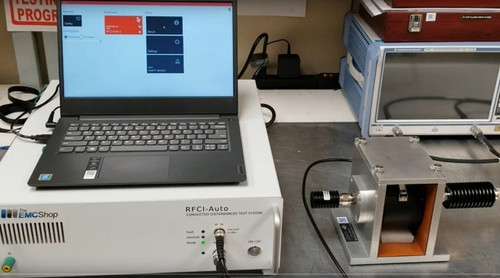

ISO 11452-4 Turn Key Solution for Harness Excitation Methods (BCI and TWC)
