EN/IEC 61000-4-9 Test Equipment
-
3ctest GN MT6 Transient Immunity Test Generator
SKU: 10541
Standards Met: IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-11Applications: Conducted Immunity Testing, CE Marking, Medical DevicesMax EUT Voltage (w/ Built in CDN): 400 VoltsMax EUT Current (w/ Built in CDN): 20 AmpsPeak inrush current capability: 500 Amps (up to 2.5 kA)Typically In Stock -
3ctest TCXS111 Power Frequency Magnetic Field Coil for IEC61000-4-8, -9, -10
SKU: sku-602
# of turns: singleDimensions: 1000*1000mm - Length*WidthMagnetic Field Strength: 1A/m ~ 400A/mStandards Met: IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-10Generic Standards: IEC 61000-6-1, IEC 61000-6-24-6 Weeks -

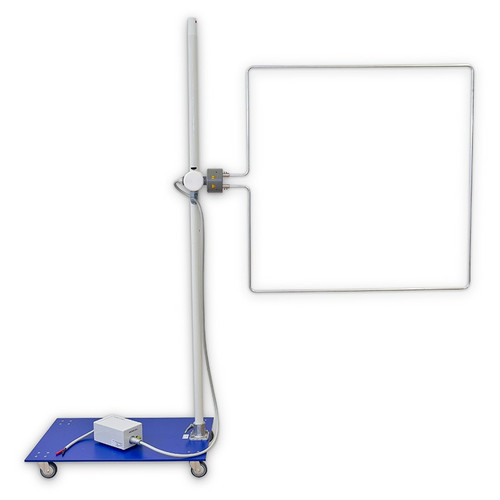

Haefely MSURGE-A Pulse Magnetic Field Generating Antenna
SKU: 11571
Weight: 25 kg# of turns: 1, 5, 37Dimensions: Coil Size: 1 x 1 m, Homogeneous field volume: 60 x 60 x 50 cmMounting Base: Rigid aluminum frame with casters -
Teseq MFO 6502 Automatic Power Line Frequency Magnetic Field Generator
SKU: 10045
Test Standards: IEC/EN 61000-4-8Antennas: Teseq INA 701, 702 or 703Compatible Generators: Teseq NSG 3040 and NSG 3060 -
Teseq INA 702 Magnetic Field Coil up to 1200 A/m Pulsed
SKU: 30173
Coil Size: 1 x 1 m / 39.3 x 39.3 inMax. Vertical Positioning Height: 130 cm / 51.1 inTurns: 1, 5, 37Max. Contin. Supply Frequency Current: 10 AMax. Short Term Supply Frequency Current (3 s): 30 AInquire for Availability -
Teseq INA 701 Magnetic Field Coil for IEC 61000-4-8 and IEC 61000-4-9
SKU: 30172
Max. Contin. Frequency Current Supply: 10 AMax. Short Term Frequency Current Supply: 30 A (3 s)Max. Contin. Frequency Field Strength Supply: 330 A/mMax. Short Term Frequency Field Strength Supply: 11100 A/mApplications: Radiated ImmunityInquire for Availability -
MFG-1000 Magnetic Field Generator & Ripple Current Tester
SKU: 11959
Field Strength Range: 1000 A/m up to 1000 HzFrequency Rnange: DC to 250 kHzTest Standards: STD-461 (CE101, CS101, CS109), EN 61000-4-16, IEC / EN 61543Inquire for Availability
